QL820NWB: The flexibel label printer with a full range of connectivity
Brother QL-820NWB Label Printer
- Model #:
- QL820NWB QL820NWBBrother
Create amazing 2-colour black/red labels for packages, envelopes, file folders, name badges and more! See full product description
Tape type
DK
Max. tape width
62mm - 2.4"
Connectivity
Smartphone, Tablet, PC
Cutter type
Automatic
Power Supply
AC Adapter
Product Description
One of Brother s quickest label printers, the QL-820NWB will make your day-to-day operations simpler! Offering fast printing speeds of up to 110 labels per minute, you ll save time (and frustration) with this user-friendly machine at your service. The built-in label templates make it quick and easy to print existing labels while simple-to-integrate free software development kits let you customize your own labels with graphics or photos. This ultra-fast Windows and Mac® compatible label printer is outfitted with an easy-to-read backlit LCD screen and can be used with an optional Li-ion battery for on-the-go use. Able to print in black and red, put it to work to create low-cost paper labels for packages, letters, file folders, name badges and more!
To learn more about the 'Brother QL-820NWB Label Printer', download the brochure here.
Main Features
- Flexible connectivity The QL-820NWB network label printer features MFi Bluetooth® technology, Ethernet and Wireless (802.11b/g/n) interfaces
- Also offers a USB Host interface for use with a peripheral such as a scanner
- Ultra-fast, up to 110 standard address labels per minute with black text at 300dpi
- Easy to read Monochrome LCD screen allows for standalone use
- Print amazing Black/Red labels using DK-2251
- Create and print labels from your mobile device with Brother iPrint&Scan and Wi-Fi Direct .
- Optional Li-ion battery for a complete mobile solution
- Easy to integrate and manage on a network using Brother s network management tools and free software development kits. SDKs are available for Windows®, iOS and Android systems.
- Create cost-effective paper labels for packages, envelopes, file folders, name badges and more
- Windows® and Mac® compatible
Brother QL 800 series label printers mean business
Full range of connectivity
With USB, wired Ethernet, WiFi® and Bluetooth® as standard, you have all your options covered. AirPrint and MFi certification (made for iPod/iPhone/iPad) ensures maximum compatibility with Apple products, too.
Print from PC, Mac, iOS and Android™ devices

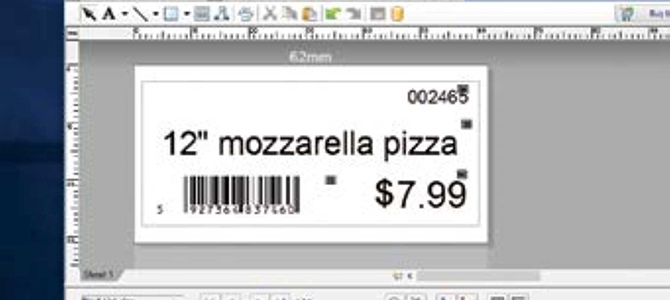

Choose from several options for designing and printing labels. Download the free P-touch Editor label design software for PC and Mac to design labels with text, barcodes, images and frames. Or, head on over to your app store to download the free iPrint&Label app for iOS and Android™ to quickly create and print labels wirelessly from your mobile devices.
Microsoft Office and database printing
The P-touch Editor add-in for Microsoft Office (Windows only) allows you to easily select and print database info directly from Word, Excel and Outlook. From Microsoft Word, simply highlight an address and click the add-in in the toolbar to print it on a label. In Excel, just highlight the desired cells and click the add-in. For Outlook, select the contact with the address you need to print the label.

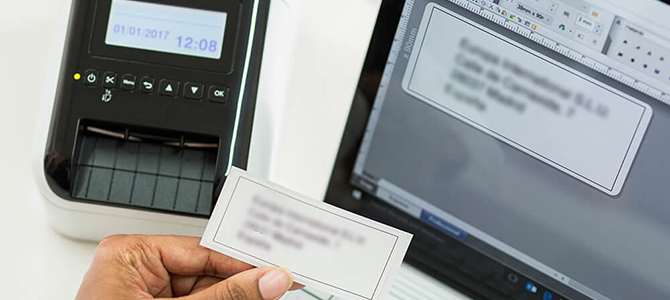

Integrated LCD for standalone printing
A large backlit graphic display makes it simple to configure the machine and select labels stored in memory that you want to print. In the event of any errors, on-screen guidance facilitates troubleshooting and problem resolution.

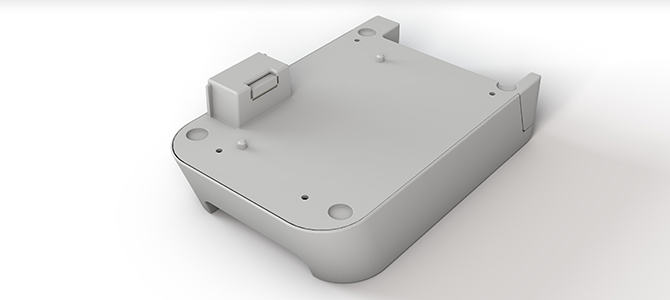

Optional Li-ion battery base
Certain situations may require you to print labels away from a power source, such as when you re working on a portable trolley and printing from a tablet in retail, healthcare or similar industries. The optional Li-ion battery base has a fast charge function and lasts for thousands of labels on a full charge.
Large range of labels for any application
The QL series of label printers uses Brother DK rolls that easily drop in for fast label changes. Several types are available:
- Pre-sized, die-cut adhesive labels in paper and plastic film
- Continuous rolls of adhesive labels in paper and plastic film that can be cut by the built-in cutter to the length you need (up to 1 metre)
- Removable adhesive for repositionable labels
| Vertical Printing | Yes |
| Max. Print Speed (Up to: labels per min.) | 110 |
| Printing Method | Direct Thermal |
| Mobile Device Compatibility | AirPrint™,Brother™ IPrint&Label |
| Mirror Printing | Yes |
| Rotate Printing | Yes |
| Barcode Printing | Yes |
Carton Contents
| Carton Contents | Software, USB Cable, AC Adapter, Quick Setup Guide, Documentation, Starter rolls: DK-1201 Die-cut Standard Address Labels (100 labels), plus DK-2251 2.4" (62mm) Continuous Length Black/Red on White Paper Tape 16.4 ft. (5m) |
Copy
| Multiple Copies | Up to 9999 copies |
Other
| Max. Label Length (Feet) | 3' |
| Tape Sizes | Die-cut and Continuous |
| Warranty | 2-Year Limited Warranty |
| Unit Dimensions (W" x D" x H") | 125 mm x 234 mm x 145 mm |
| Interface(s) | Bluetooth,Ethernet,USB (1.1 or 2.0),USB Host,Wireless |
| Power Source | AC 110V-120V AC 50/60 Hz |
Hardware Features
| Max. Tape Width (inches) | 2.4" |
| Cutter | Auto |
| Operating System (Compatibility) | Mac® OS X 10.10.5 and later,Windows Server® 2008,Windows Server® 2012,Windows® 10,Windows® 7,Windows® 8,Windows® 8.1,Windows® Vista |
| Max. Resolution (dpi) | 300 x 600 dpi (Superfine Mode) |
Software Features
| Barcode Types | CODABAR (NW-7),Aztec Barcode,CODE 128,Code 39,Data Matrix,EAN 13,EAN 8,ISBN-2 (EAN13 AddOn2),GS1 Databar Composite,ISBN-5 (EAN13 AddOn5),Laser Barcode,MaxiCode,PDF-417,POSTNET,QR Code,RSS,RSS Expanded,RSS Expanded Stacked,RSS Limited,RSS14 Stacked,RSS14 Stacked Omni,RSS14 Standard,RSS14 Truncated,UCC/EAN-128 (GS1-128),UPC-A,UPC-E |
| Database File Compatibility | Mac® CSV, TXT,Microsoft® SQL Server Database,Windows® CSV, TXT, MDB, XLS |
| Software Included | P-touch Address Book 1.2 for Windows®,P-touch Editor 5.1 for Mac®,P-touch Editor 5.1 for Windows® |
| Printer Driver Compatibility | Windows®,Mac® |
| Label Collection | Yes |
| PC Connectable | Yes |
| Date/Time Stamp | Internal Time,PC Generated |
| Networking | Yes |
